Gas heat pump is a unit which allows producing heat and cold simultaneously. Its technical construction is a combination of gas combustion engine, compressor, heat exchanger and control system in one functional module. The working principle of gas heat pump is the same as of usual heat pump. The difference between them lies in replacement of electric engine for compressor drive by gas combustion engine, extra heat of which we can use the same way as in CHP unit.

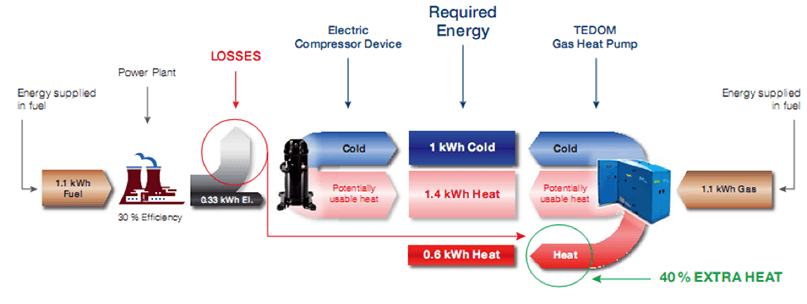

The comparison of heat and cold production out of electricity or gas
Who is intended to use gas heat pump?
- enterprises who use heat and cold simultaneously
- types of manufactures using in large quantities cold in summer and heat in winter
- types of manufactures with constant cold demand
- operations with high heat requirements
TEDOM Polo 100 – options of performance parameters
|
air – water Refrigerant R507 * |
For waste heat recovery, refrigerant R134a ** | |
| Evaporator power (С) | 94,9 кВт | 95, 8 кВт |
| Condenser power (Н1) | 137 кВт | 132 кВт |
| Engine and combustion materials’ power (Н2) | 62,3 кВт | 53,7 кВт |
| Fuel power consumption | 115 кВт | 99,4 кВт |
| * te = -5 0С, tc = 50 0С; ** te = 12 0С, tc = 65 0С | ||
